Revopoint
Range 2

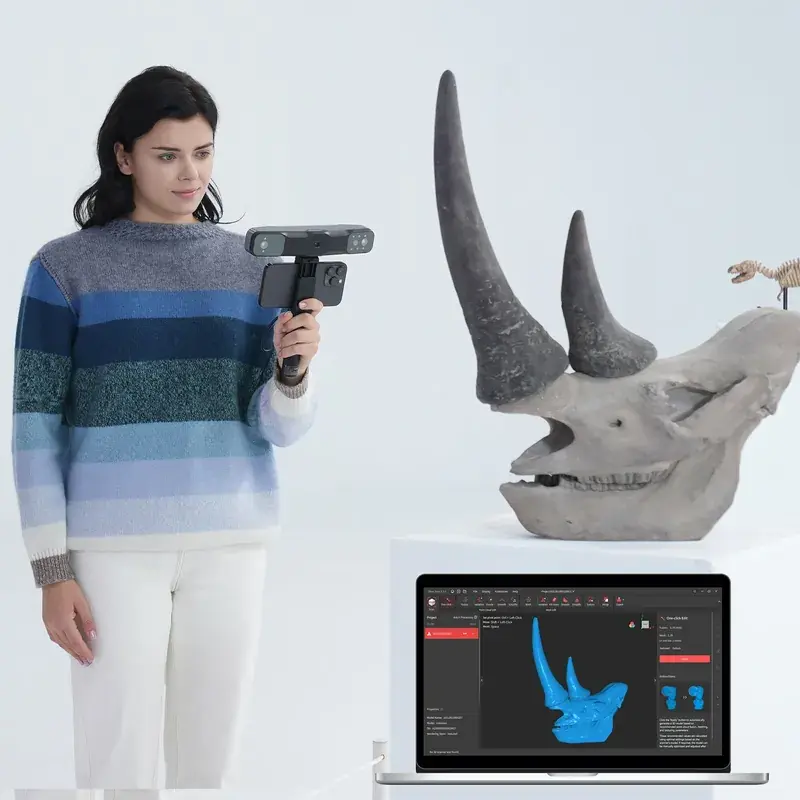

Revopoint RANGE 2 is a portable handheld dual depth camera structured infrared light 3D scanner designed for capturing large objects like furniture, people, and vehicles.
Product Features
Large-sized objects Scanning
Revopoint RANGE 2 is a portable handheld structured infrared light 3D scanner for capturing large objects like furniture, people, and vehicles. Its 60% bigger capture range and scanning distance offer better tracking and faster scans.
Reliability Matters
Reliably and consistently capture objects with RANGE 2's single-frame precision of up to 0.1 mm.
Bigger Capture
Make short work of large object scanning with RANGE 2’s new Depth Cameras powering a 60% bigger 1,300 mm working distance and 860 mm x 1380 mm single capture range for faster, better surface data capture.
Upgraded Camera System
Create sharper 3D models and capture better colour scans with RANGE 2's higher resolution RGB and Depth Cameras.
Popping Colour Scans
Create colour-accurate 3D models with RANGE 2's new high resolution bigger aperture RGB Camera capturing more colour details, and 4 Flash LED lighting system removing shadows for even colour capture.
Smarter Tracking
RANGE 2’s improved tracking system provides better frame stitching with the help of its 9-axis IMU’s motion data and 1.8GHz 2-core CPU, removing faulty frames caused by rapid movements and shaking.
Efficient Scans
Streamline 3D modelling processes by quickly creating ready-to-use 3D models at up to 16 fps scanning speeds.
Greater Control
Seamlessly swap between turntable to handheld scanning to easily capture every surface. Control the scan and adjust its exposure effortlessly using RANGE 2’s three new tactile buttons.
Better Connectivity
RANGE 2 has completely updated its connectivity options with Wi-Fi 6 for faster, lower latency mobile scanning and USB Type-C for plug-and-play PC connections.
Highly Portable
Go everywhere and scan on the go with RANGE 2's lightweight and compact design combined with compatibility with iOS and Android devices.
High-Performance Software
Revo Scan 5 is your portal to intuitive 3D scanning and powerful editing. And it runs on nearly everything, with full support for iOS, Android, Windows, and macOS devices. Export your models in STL, PLY, or OBJ formats for compatibility with most CAD, 3D modelling, and slicer.
What's in the Box?
Top Accessories
*add-ons are not included
Large Turntable
Scan large objects or people even faster with the Large Turntable. It has a maximum load of 200 kg and a powerful motor, keeping the table spinning smoothly even at max weight. Adjust its speed and rotation on the fly through its remote control or app.
Dual-axis Turntable
Simplify the scanning process and eliminate the need for object repositioning during scanning with the Dual-axis Turntable’s adjustable speed rotation, 30°tilt, and 5kg max load.
Revopoint Range 2 - 3D Scanner
Product Name RANGE 2 3D Scanner
Scanning
Technology Dual-camera Infrared Structured Light
Single-frame Precision Up to 0.1 mm
Single-frame Accuracy Up to 0.3 mm
Single Capture Area
at Nearest Distance 220 x 425 @ 400 mm
Single Capture Area
at Furthest Distance 860 x 1380 @ 1300 mm
Working Distance 400 - 1300 mm
Point Distance Up to 0.1 mm
Minimum Scan Volume 50 × 50 × 50 mm
Scanning Speed Up to 16 fps
Tracking Methods Feature/Marker
Outdoor Scanning Yes
Colour Scanning Yes
Special Object Scanning Use scanning spray for transparent, dark, or highly reflective objects.
Hardware
Position Sensors 9-axis IMU
3D Light Source Class 1 Infrared Light
Software
Ready to Print 3D Models Yes
Compatible
Operating Systems Windows 10/11 (64-bit), Android, iOS, macOS
External Controls Three buttons for Start/Pause, Exposure +, -
Infrared Fill Lights Yes
White Flash LEDs Yes
Output File Formats PLY, OBJ, and STL
Connectivity
Wi-Fi Wi-Fi 6
Connector Type USB Type-C
Physical Information
Scanner Weight 253 g
Dimensions (L x W x H) 240 x 43 x 46 mm
1. Precision is how close repeated measurements of the same object are to each other. Accuracy is how close a measured value is to the actual (true) value. They were both acquired in a controlled lab environment. Actual results might vary, subject to the operation environment.
2. Class 1 Laser: Avoid direct eye exposure for extended periods! Refer to Standards for Class 1 Lasers for details.
3. Outdoor scans should avoid direct sunlight.
4. Some products have flashing lights, which may not be suitable for people with photosensitive epilepsy.
